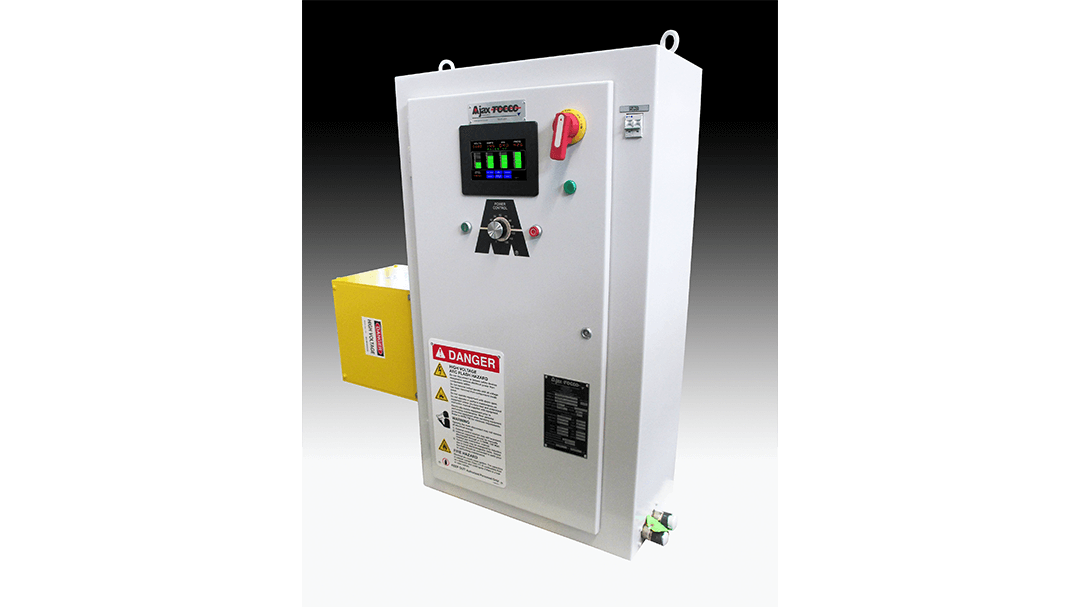

Pacer RF Compact Power Supply

Pacer RF Compact Power Supply

Frequency Range: 100-450 kHz
Power Range: 20 kW and 40 kW



The Pacer RF power supply is the solid state solution for RF induction applications. This frequency range is ideal for heating products such as small diameter wire, thin wall tubing/sheet, shallow case hardening, etc.



Features & Benefits:

  • Efficient, precision heating
  • Reduction in energy consumption
  • Compact, rugged, dependable in harsh
    industrial environments
  • State-of-the-art power conversion technology
  • Ultimate load matching flexibility
  • Internal trending and data logging
  • Conservative 100% duty cycle rating
  • Minimal water consumption and highly efficient power circuit to
    minimize water cooling requirements
  • Automatic load frequency tracking with a generous tuning
  • High resolution, all-digital logic
  • 100-450 kHz frequency range – ideal for heating small diameter
    wire, thin wall tubing/sheet, shallow case hardening, etc.
  • Transformer isolated output
  • Internal load matching components for a reduced footprint and
    simplified installation window for little or no user required load matching adjustments
  • Optional compact remote capacitor banks for remote mounting
    the heating coil up to 25 ft. away from the power supply
  • CE certification

Discuss Your Power Supply Needs

CONTACT US

Providing Heating & Melting Solutions Since 1916

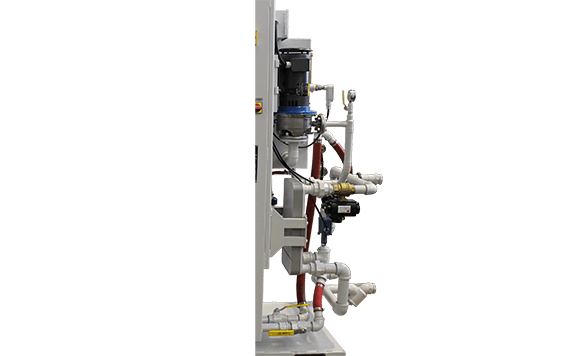

Optional Side Mounted Water Supply

The optional side mount water supply features all nonferrous components with a self-contained pump and motor, and a high efficiency heat exchanger that ensures high quality water is fed to the critical components.



Power Supply Pacer RF Compact side mount water

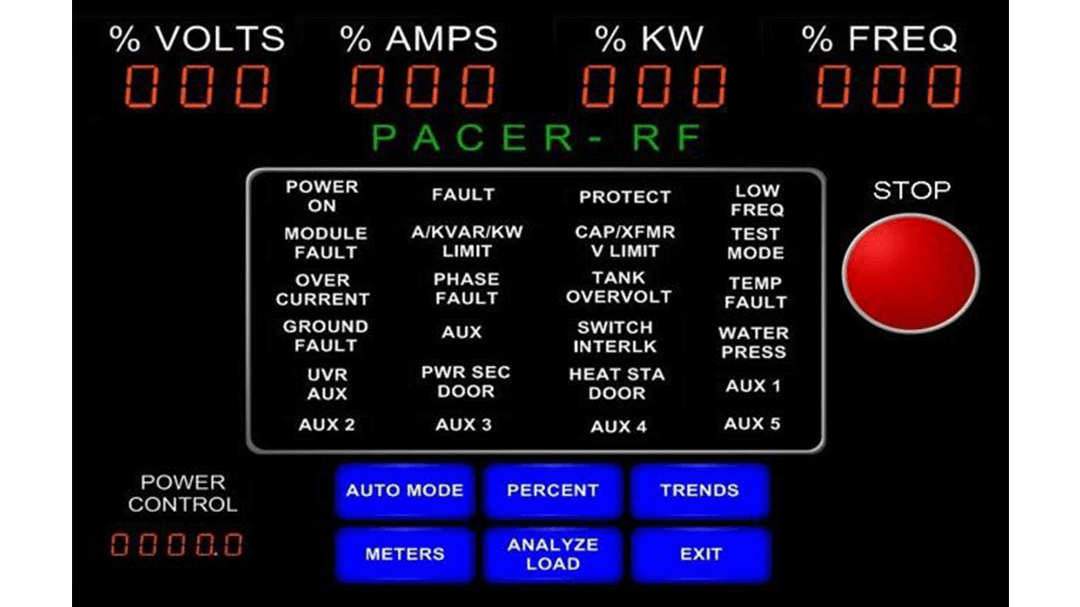

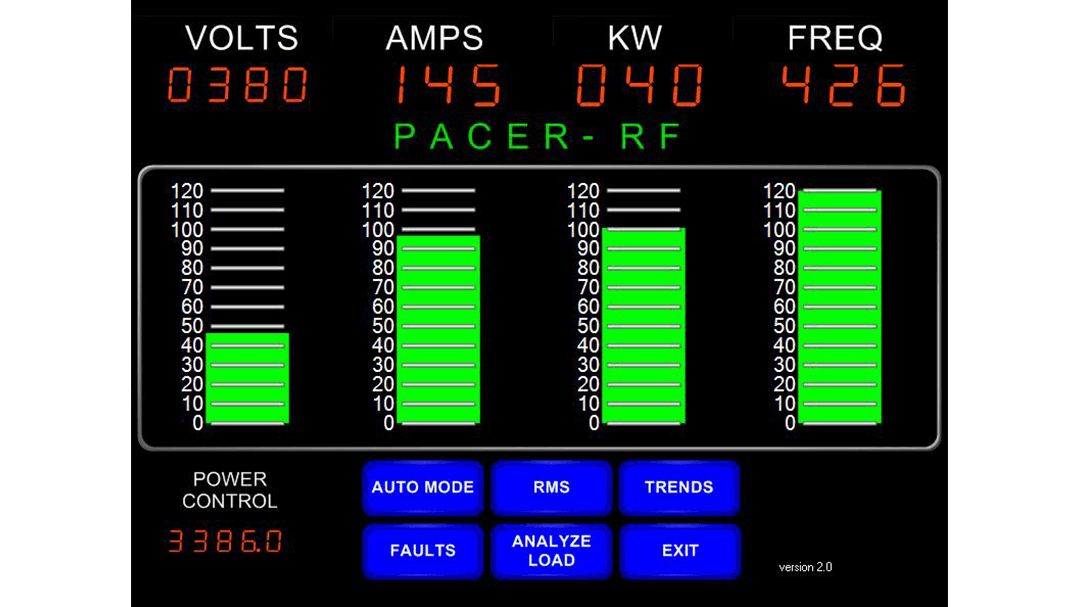

Touchscreen Diagnostics

The touchscreen display allows for convenient monitoring and helpful troubleshooting steps.

Optional water path temperature monitoring is available.

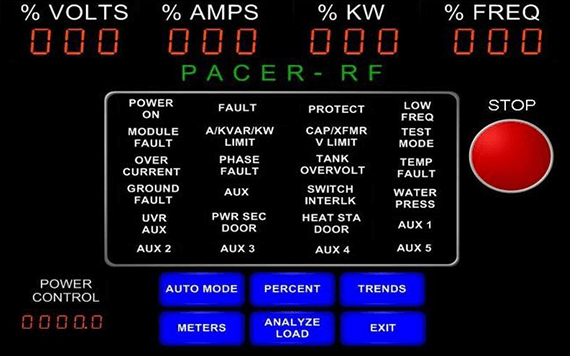

Power Supply Pacer RF HMI Display

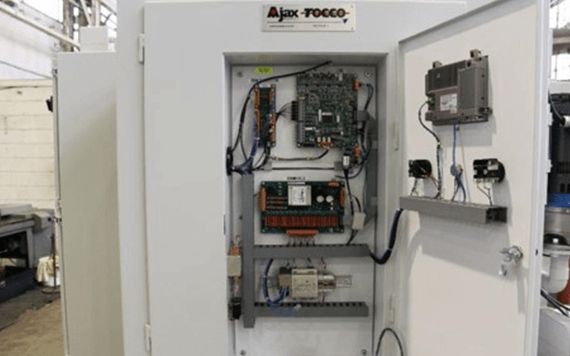

Isolated Cabinet Design

The power supply is designed to isolate the logic board, keeping it separate from any water or electrical failure in the power circuit, dramatically increasing board life and greatly reducing maintenance.



Power Supply Pacer RF Isolated Cabinet
