Pacer HF Power Supply

Pacer HF,
High-Frequency Power Supply

Frequency Range: 25-100 kHz
Power Range: 100-6,000 kW (6 MW)

The Pacer HF induction heating power supply represents the latest in high-frequency inverter technology. The wide conductance window and wide frequency range make this unit the most user-friendly and versatile induction heating power supply on the market.

Features & Benefits:

  • IGBT Inverter Technology
    *MOSFETS used for higher frequency
  • High-efficiency solid state frequency conversion
  • Single board logic control system simplifies maintenance
  • Built-in diagnostics
  • Water cooled with optional side-mount water system
  • Main circuit breaker includes under-voltage trip
  • Complete short circuit protection
  • Digital metering of output kW, volts, amps, and frequency
  • Tubular cabinet frame for maximum strength
  • Cabinet isolation of the control section from the power section for safety
  • Continuous power control from 3% to 110%
  • Internal load matching components
  • All-digital HMI dashboard

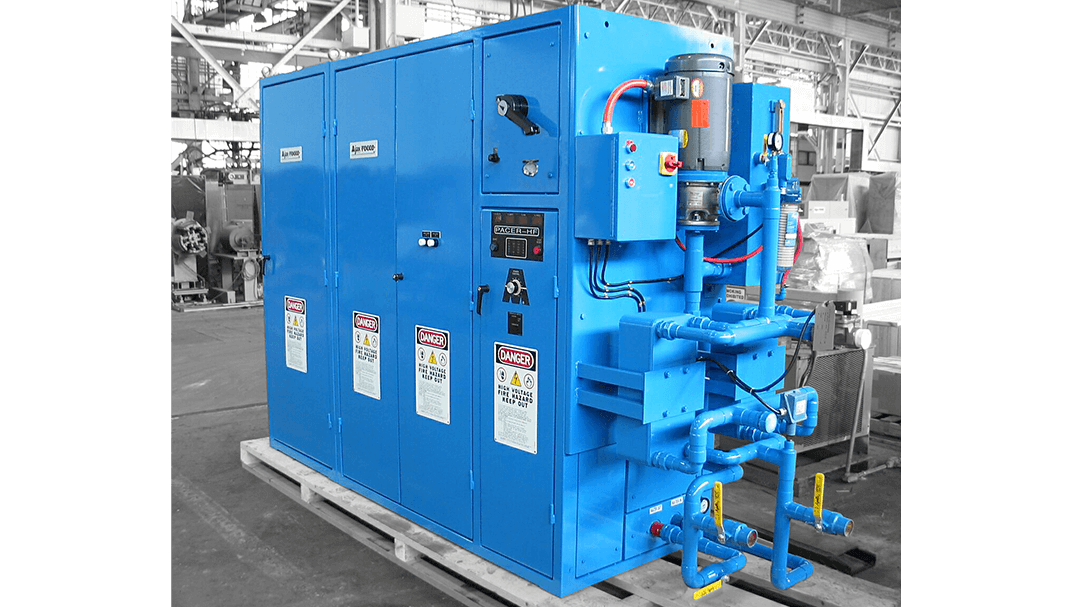

Power Supply Pacer HF 100 0002

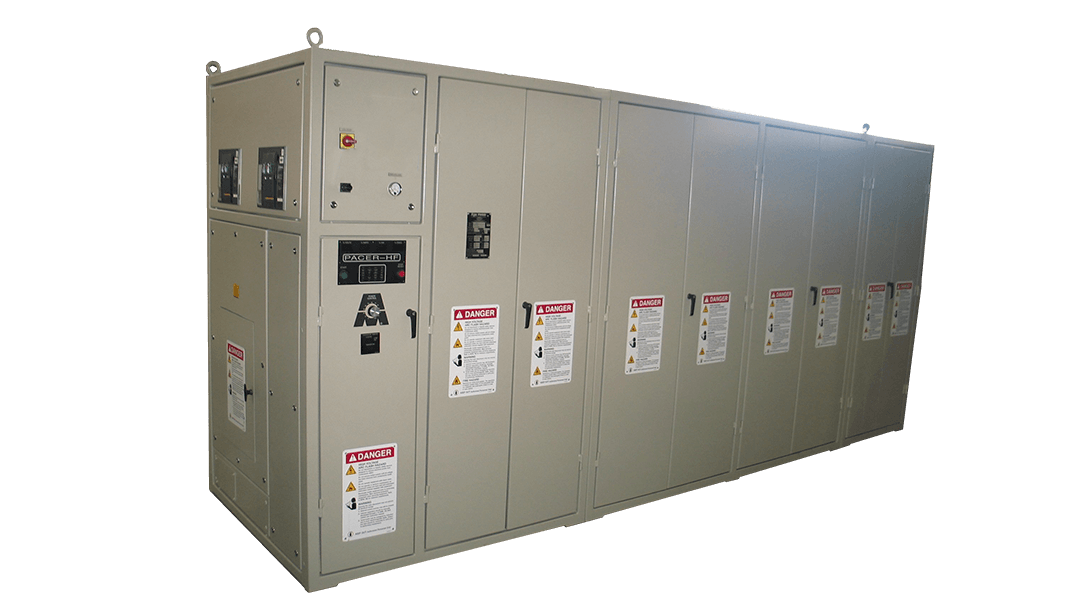

Power Supply Pacer HF Danieli

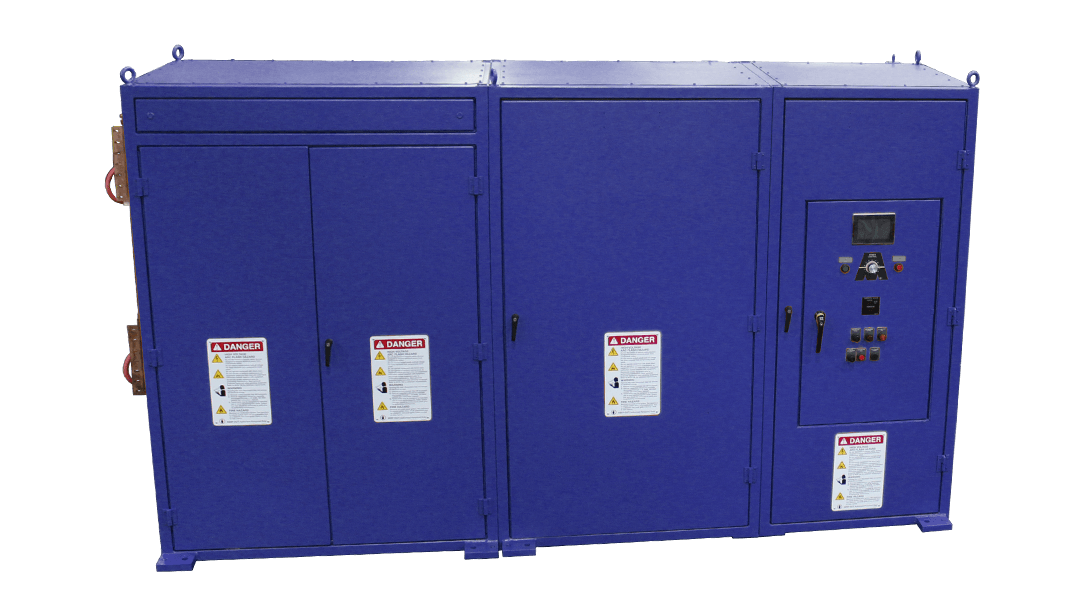

Power Supply Pacer HF Bluescope

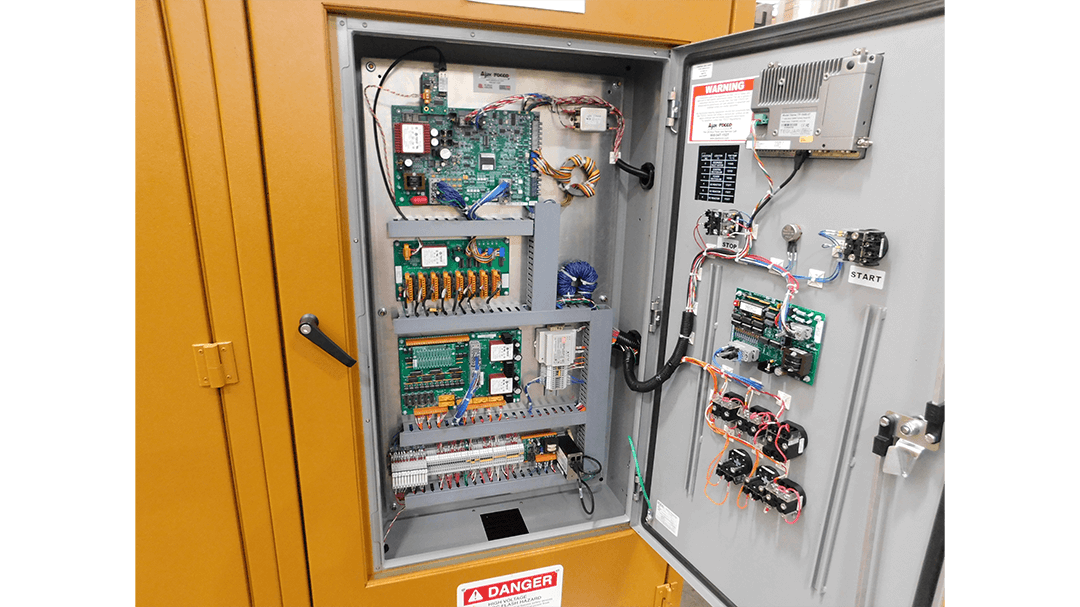

Power Supply Pacer HF inside cabinet

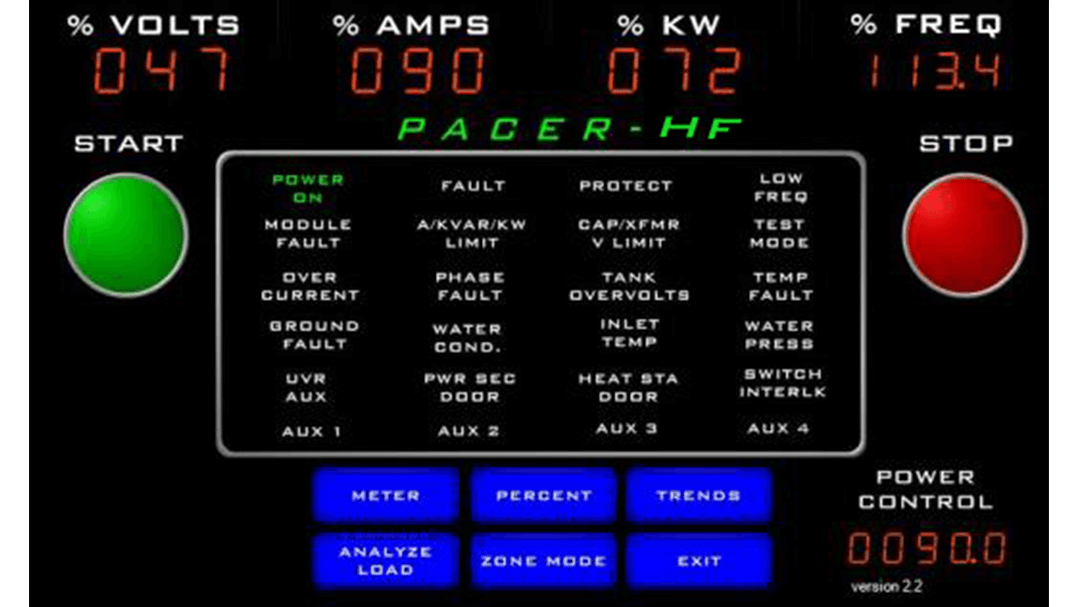

Power Supply Pacer HF HMI Screen



Power Supply Pacer HF 100 0002
Power Supply Pacer HF Danieli
Power Supply Pacer HF Bluescope
Power Supply Pacer HF inside cabinet
Power Supply Pacer HF HMI Screen

Discuss Your Power Supply Needs

CONTACT US

Providing Heating & Melting Solutions Since 1916

Optional Side-Mounted Water Supply

The optional side-mount water supply features all non-ferrous components with a self-contained pump and motor and a high-efficiency heat exchanger that ensures high-quality water is fed to the critical components.



Power Supply Pacer HF side mount water


Touchscreen Diagnostics

The touchscreen display allows for convenient monitoring and helpful troubleshooting steps.
Optional water path temperature monitoring is available.



Power Supply Pacer HF HMI Display
