PowerForge

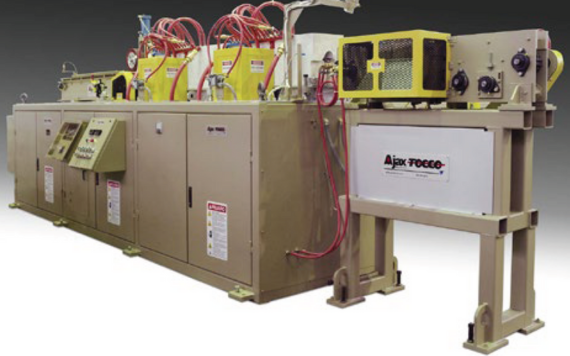

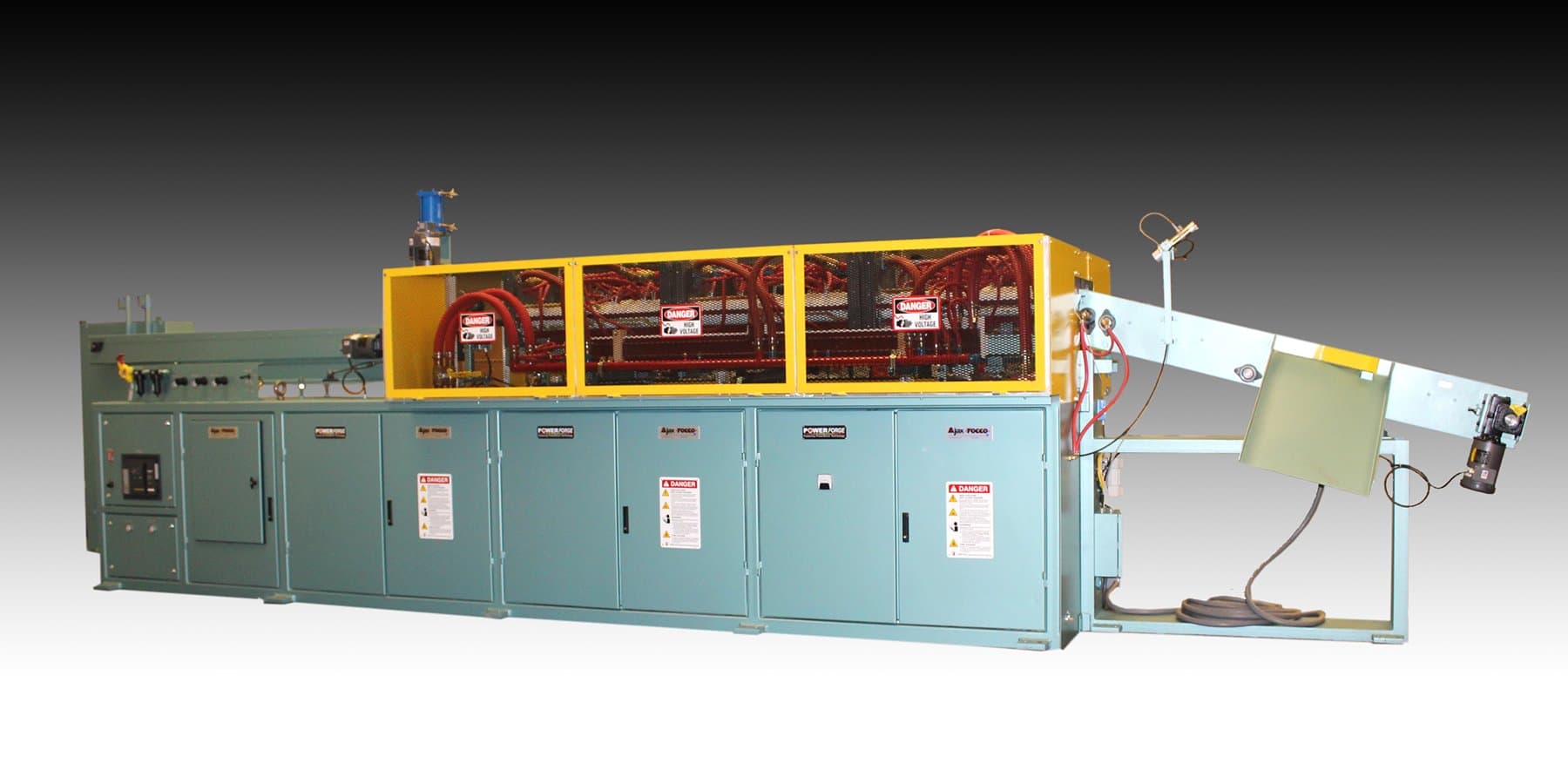

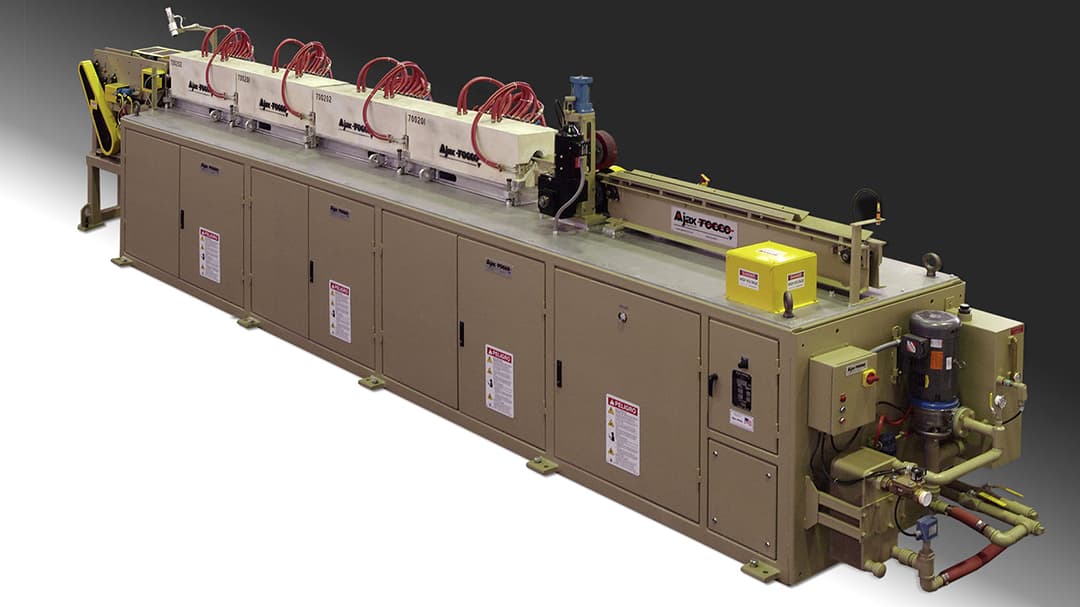

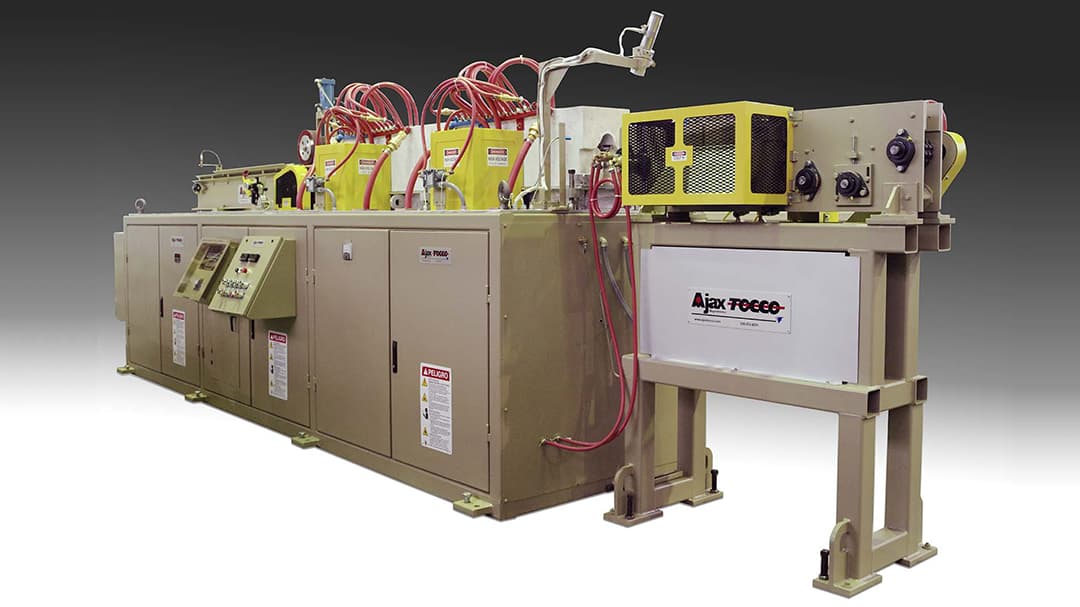

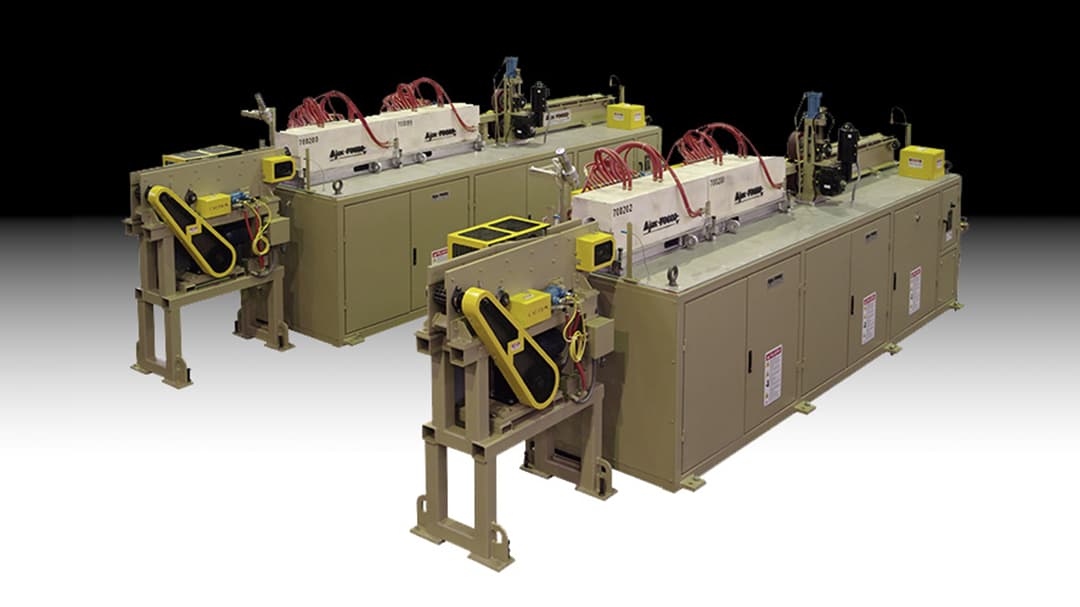

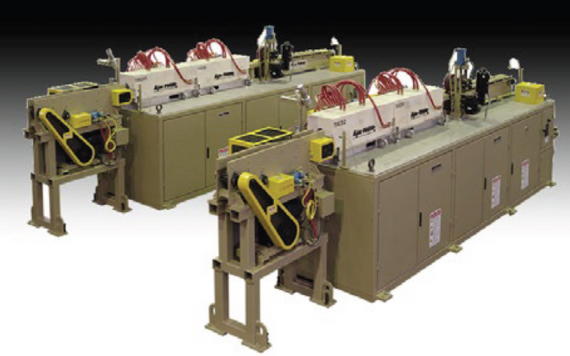

PowerForge Induction Heater

The Ajax TOCCO PowerForge design integrates the entire induction system, including the water-cooling system, onto a common base for a quick, efficient installation that conserves floor space. Whether you need 500 lbs per hour or 12,000 lbs per hour, heating billets or bar ends, Ajax TOCCO has over 100 years of experience providing systems that meet your requirements for maximum efficiency.



The Ajax TOCCO PowerForge is a state-of-the-art Induction Forging System that affords the best possible energy efficiency and Power Factor.   Our systems are designed for energy efficiency and will save you energy dollars.   We eliminate the losses associated with transformers and interconnections. Our state-of-the-art power supplies utilize the best possible energy-saving components.

Shape your success today- contact us about our premium forging equipment.

CONTACT US

50 kW - 8,000 kW

Power Range

500 Hz – 30 kHz

Frequency Range

3 phase,
380 – 575 Vac

Input Line Voltage

Features & Benefits

  • IGBT PowerBlock technology
  • Minimal floor space requirement
  • Turn-key operation
  • Built-in heat station
  • Built-in power supply
  • Built-in pinch roll drive
  • Built-in exit conveyor
  • Quick change coil(s)

PowerForge


Options

  • Coil shuttle
  • Cooling water recirculating systems
  • Loaders/feeders
  • Recipe builder software control
  • Coil cassettes
  • Replacement liners
  • Wear rails

PowerForge (2)


Resources

Ajax TOCCO Supplies Induction Billet Heating System At Bonney Forge

Ajax TOCCO Supplies Induction Billet Heating System At Bonney Forge

Jun 23, 2015 by Ajax TOCCO Magnethermic

Ajax TOCCO Magnethermic recently shipped a 1300 kW PowerForge billet heating system to Bonney Forge Corporation, located in Mt. Union, PA. Learn more.

Ajax TOCCO Supplies Induction Billet Heating System

Ajax TOCCO Supplies Induction Billet Heating System

Jun 14, 2016 by Ajax TOCCO Magnethermic

Ajax TOCCO Magnethermic recently shipped a 1000 kW PowerZone billet heating system to LC Manufacturing, located in Lake City, MI. Learn more.
