Ajax TOCCO Magnethermic
Ajax TOCCO recently shipped a 1900 kW induction heating dryer system to a steel strip galvanizing producer in China for the drying of coatings including Passivation, with and without chrome products, and organics.
This high-powered induction dryer is designed to heat steel strip 0.40 mm to 2.50 mm thick, and 800 mm to 1676 mm wide at a rate of 220 meters/minute or 116 metric tons/hour. The equipment will provide a temperature rise of 90 degrees C.

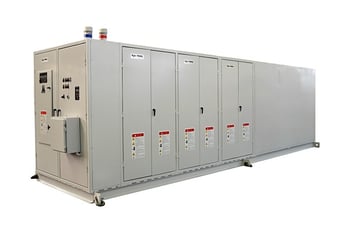

The system is designed as a single, unitized package assembly that includes the frequency converter, capacitor cabinet and single-turn heating coil. The project also included the interface I/O, heating control model, and water cooling system. The installer puts the system in place and only connects power, water, and control to the respective takeover points, minimizing on-site installation time.
As the innovator of strip heating systems, equipment like this can be packaged and used in several areas of a strip heating line, including galvanizing. Ajax TOCCO has provided high-powered systems with frequencies ranging from 3000 Hz to 450,000 Hz for heating strip, depending on the customer’s requirements.

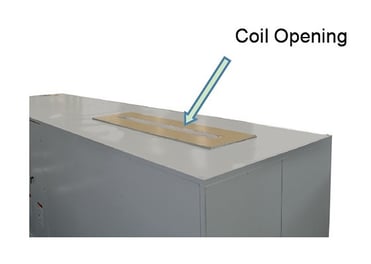

Single unitized assembly to locate in place:
Ajax TOCCO Magnethermic, a subsidiary of Park-Ohio Holdings Corp., designs and manufactures world-class induction heating and melting equipment for various industries and applications throughout the world. In addition, the company provides a range of services and offerings including laboratory process development, preventive maintenance, equipment repair and parts, coil repair facilities, and installation services through its locations in North America, South America, Europe, and Asia.
